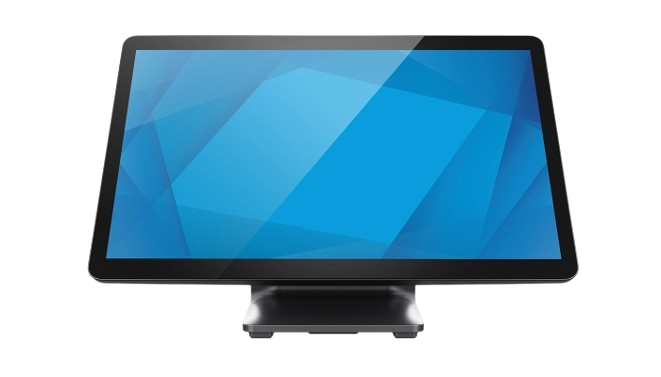

15.6″ Elo 1504L Full HD LCD Touch Signage

The 15.6-inch Elo 1504L Touchscreen Monitor, product code E969493, is a commercial-grade interactive display designed for point-of-sale systems, self-service kiosks, kitchen display systems, warehouse automation, access control, human-machine interfaces, and other business applications. This configuration includes a desktop stand, allowing it to be used as a freestanding touchscreen workstation while retaining compatibility with wall mounts, pole mounts, kiosk enclosures, and other VESA mounting systems. The 1504L connects to a separate computer, point-of-sale terminal, or compatible compute device.

The 15.6-inch active-matrix TFT LCD features a 1920 × 1080 Full HD resolution, 16:9 aspect ratio, 1,000:1 contrast ratio, and wide 178-degree horizontal and vertical viewing angles. Typical brightness is 450 nits for the LCD panel and 405 nits through the TouchPro touchscreen, while the typical response time is 25 milliseconds. Its optically bonded, anti-glare display also includes low-blue-light settings to improve clarity and viewing comfort.

Elo’s TouchPro projected-capacitive technology supports up to 10 simultaneous touch points, providing responsive and accurate multi-touch interaction. Touch Through capability supports compatible gloves and additional layers of films or filters. The edge-to-edge glass surface is scratch-resistant, while the monitor’s IP54-sealed design provides protection against dust and spills and its IK08 rating provides resistance against physical impact.

Video and device connectivity includes USB Type-C, DisplayPort, HDMI, USB Type-A, DC power input, and four micro-USB Elo Edge Connect ports. USB Type-C supports compatible video, touch, and power connections, while the monitor can provide up to 18W of USB-C power delivery for a compatible Elo Pay 7 device. Integrated audio is provided by two internal 2W speakers.

The four Elo Edge Connect ports support compatible accessories such as barcode scanners, payment-device cradles, magnetic-stripe readers, RFID readers, fingerprint scanners, cameras, customer displays, status lights, and the Elo speaker bar. These accessories can be attached directly to the edges of the display, allowing the monitor to be configured for payment, identification, inventory, point-of-sale, and self-service applications.

The E969493 includes a desktop stand and features both 75 × 75 mm and 100 × 100 mm VESA mounting interfaces. With the stand installed, the monitor measures approximately 371.1 × 257.8 × 128.8 mm and weighs approximately 6.39 lb (2.9 kg). It is ENERGY STAR 8.0 certified, has a demonstrated 50,000-hour MTBF, and is backed by Elo’s three-year standard warranty.
