Kit de fixation pour poteau Elo 6"
UGS : E134699
$609.95
Retail price: $649.59
11 in stock
Kit de fixation robuste pour poteau de 15 cm (6 pouces) destiné à une installation par boulonnage. Compatible avec les écrans tactiles Elo et la série I (Android et Windows).
Technical specifications
Detailed technical information and specifications for this product.

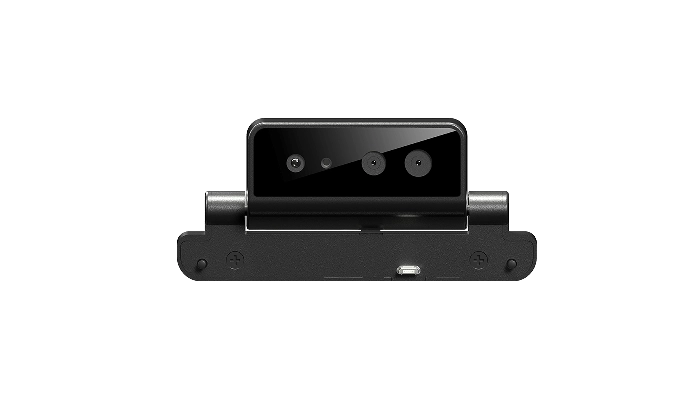

| Product Name | Elo Edge Connect 3D Camera |
| Product Code / SKU | E134699 |
| Accessory Type | 3D depth-sensing and RGB camera accessory |
| Compatibility | Compatible with Elo I-Series 4 for Android, I-Series for Windows 2.0, I-Series Intel 3.0 for Windows and Linux, EloPOS, 1002L–2702L touchscreen monitors, and selected 3202L–6553L touchscreen-signage models. Signage output is limited to a maximum resolution of 1920 × 1080. |
| Connection / Interface | Elo Edge Connect interface; designed to attach directly to a compatible Elo touchscreen |
| Key Features | RGB and 3D depth sensing; 0.25–1.5 m operating range; depth resolutions of 1280 × 800 at 30 fps or 640 × 400 at 60 fps; RGB resolutions of 1920 × 1080 at 30 fps or 1280 × 720 at 30 fps; Class 1 laser product. Supports facial recognition, authentication, liveness detection, gesture tracking and AR/VR applications when used with compatible third-party software. |
| Power Requirements | 5.0V DC, powered through the connected Elo device |
| Mounting / Installation | Attaches to a compatible Elo Edge Connect peripheral bay and is secured using the two included mounting screws; can be positioned on a compatible side of the display |
| Dimensions | 119.48 × 53.45 × 20.28 mm |
| Weight | 0.2 lb (0.09 kg), unpackaged |
| Warranty | 2-year manufacturer warranty |
| What’s Included | Elo Edge Connect 3D Camera, 2 mounting screws, 2 Mylar screw covers and Quick Install Guide |
